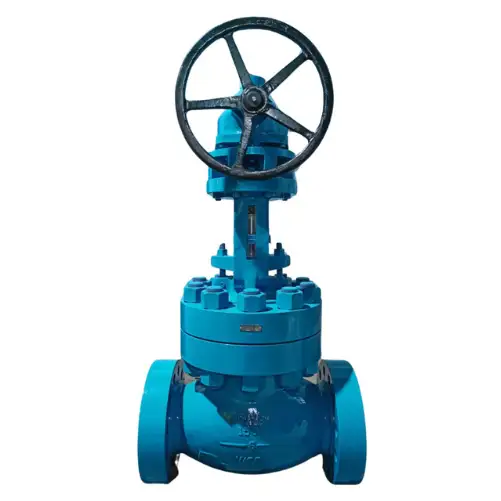

Globe Valve

GLOBE VALVES

(BOLTED BONNET & PRESSURE SEAL BONNET)

  • Size: 1/2"-20" (15NB - 500NB)
  • Class: 150#-2500#
  • CS / SS / Alloys / Monel / Hastalloys Steel / Bronze MOC
  • Parabolic , Regulating, Throttle and Guid Type Plug
  • Staight "T" Type, "Y" Type, Angle Type.
  • Speciality : Below Sealed, Cryogenic, High Temp and with pressure balancing arrangement.
  • Metal to Metal and Metal to soft seat
  • Manual Operated / Gear Box / Pneumatic / Electrical Actuator
  • Design : ASME B16.34 / BS 1873
  • Face to Face : ASME B16.10 / DIN IS
  • End to End: BW Type / Flanged End / RTJ
  • Pressure -Temperature Rating : ASTM B 16.34
  • Screwed End Dimension : ASTM B 1.20.1
  • BW End: ASME B16.25
  • Test: API 598 / BS 6755
  • Fire Safe: NACE MR-01-75 / 0103
