Forged Valve

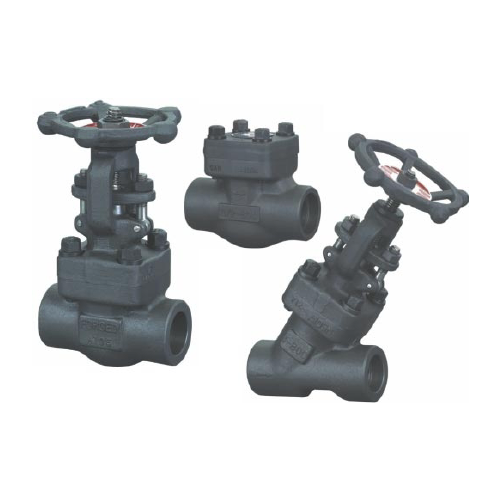

FORGED VALVES

( GATE / GLOBE / LIFT, SWING CHECK)

  • Size: 1/2"-2" (15mm - 50mm)
  • Class: 150#-2500#
  • C S / CI / SS / Alloys / Monel / Hastelloy Steel MOC
  • Manual Operated / Pneumatic / Electrical Actuator
  • Staight "Y" Type
  • Speciality : Below Sealed, Cryogenic and Hight Temp
  • Metal to Metal and Metal to soft seat
  • Design : API 602 / BS 5352 / BS 15761
  • End Flang : ASME B16.5 / B16.47 / DIN / BS IS / JIS
  • BW End : ASME B16.25
  • Socket end standard : ASME B16.11
  • Screwed ends : ASME B1.20.1
  • Test : API 598 / BS 6755
  • Pressure -Temperature Rating : ASTM B 16.34
  • Speciality: NACE MR-01-75
