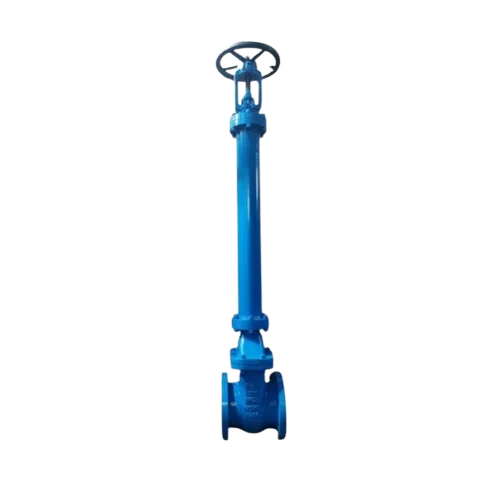

Bellow Seal Valves

BELLOW SEALED ( GATE / GLOBE ) VALVES

  • Size : 1/2"-24"
  • Class : 150#-600#
  • CS / CI / SS / Alloy / Monel / Hastelloy MOC
  • Hand Lever, Gear Box, Pneumatic / Electrical Actuator
  • Cycling 2000 / 10000 / 20000
  • Actuation : Hand wheel, Gear box, Electrical & Pneumatic actuators
  • Service : Chlorine, Hot oil, Gas, High Temp.
  • Speciality : Bellow Failure Indicator on request
  • Bellow Construction Single Ply / Multiple Ply
  • Design : ASME B16.34 / BS 5352 / API 600 / BS 1873 / API 602
  • Face to End : DN 3202
  • End to End: BW / Flanged
  • End Flange : ASME B16.5 / DIN / BS / IS
  • TestAPI 598 / BS 6755
  • Bellow : Inconel / SS / Hast Alloy
  • Seat: Metal to Metal / Metal to soft Seat
