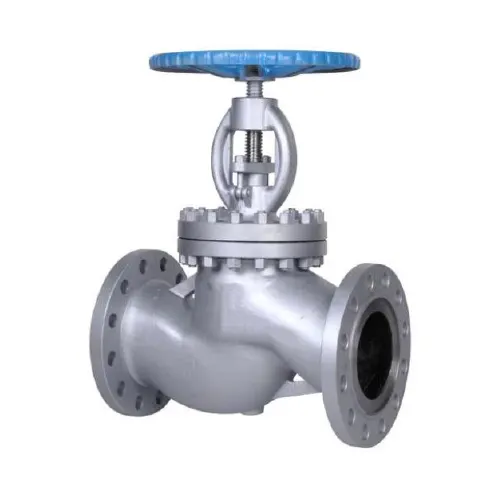

DIN Globe Valve

DIN GLOBE VALVES

  • Size : 1/2"-16" (15mm-400mm)
  • Class : PN 6 - PN 320
  • MAT. OF CON.: CI / CS / SS / Alloys / Monel / Hastelloys MOC
  • Y Type and Angle Type Construction
  • Plug Design - Regulating Disc, Soft Seat, Throtting Type Guided Disc
  • Removalbe Plug Design
  • High Temperature , Cryogenic services.
  • Low emission
  • Actuation : Hand wheel / Gear Box / Electric Actuators
  • Speciality : Bellow Sealed Arrangement
  • Design : ASME B16.34 / DIN 3356
  • Face to Face : DIN 3202
  • End to End: BW Type / Flanged End / RTJ
  • End Flange : ASME B16.5 / DIN / BS / IS
  • BW End: ASME B16.25
  • Test : BS 6755-1 / API 598
  • Pneumatic Test : As per Client Specification
  • Special : NACE MR-01-75
